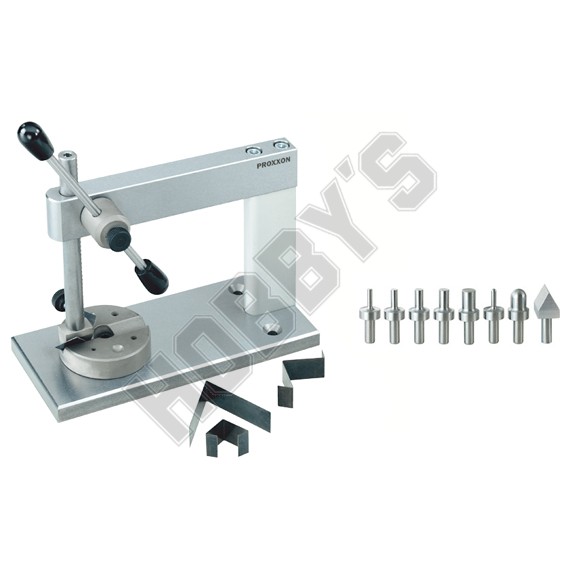

MP 120 Micro Press

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

MP 120 Micro Press

Email to a Friend

Be the first to review this product

£131.65

Code: 27200

Add Items to Cart Add to Cart

Quick Overview

Force of pressure approx. 1,000N (100kg). Maximum stroke of toothed rack with inserted tool 65mm, above revolving plate 50mm. Solid steel arm with 120mm throat. Ground base plate of steel, 80 x 190mm with an 8mm centre and two fastening bores. Weight approx. 2,800g.


With 5 cylindrical pressing tools (surface hardened) being inserted into the toothed rack and fixed with a knurled screw: Ø 3 - 4 - 5 - 6 and 8mm. One each semi-spherical profile Ø 3 and Ø 9mm as well as a 60° square prism for bending sheet metal. The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified pressing tools.

Toothed rack at one front end with 6mm bore for use of the 8 bottom dies for the above-specified pressing tools. 5mm bore at the other front end for use of all commercially available riveting tools: simply wind up the toothed rack, take it out and reinsert it upside down.
